The Jandy CV Series represents the pinnacle of cartridge filtration, built specifically for commercial applications. Unlike smaller residential filters, these models deliver maximum surface area to ensure the clearest water and prolonged cleaning intervals. Designed to work seamlessly with Jandy’s Versa Plumb® system, the CV filters offer enhanced hydraulic performance and higher flow rates.
Constructed from heavy-duty, high-impact polymeric materials, these filters resist corrosion and daily wear, ensuring they endure tough environments year after year. They feature a large drain port for effortless removal of debris, optional anchor brackets for secure placement on the equipment pad, and easy-grip handles on the tank lid for painless maintenance. The convenient clean/dirty pressure gauge lets operators quickly assess performance, and standard 2½-inch Jandy union connections simplify plumbing integration.

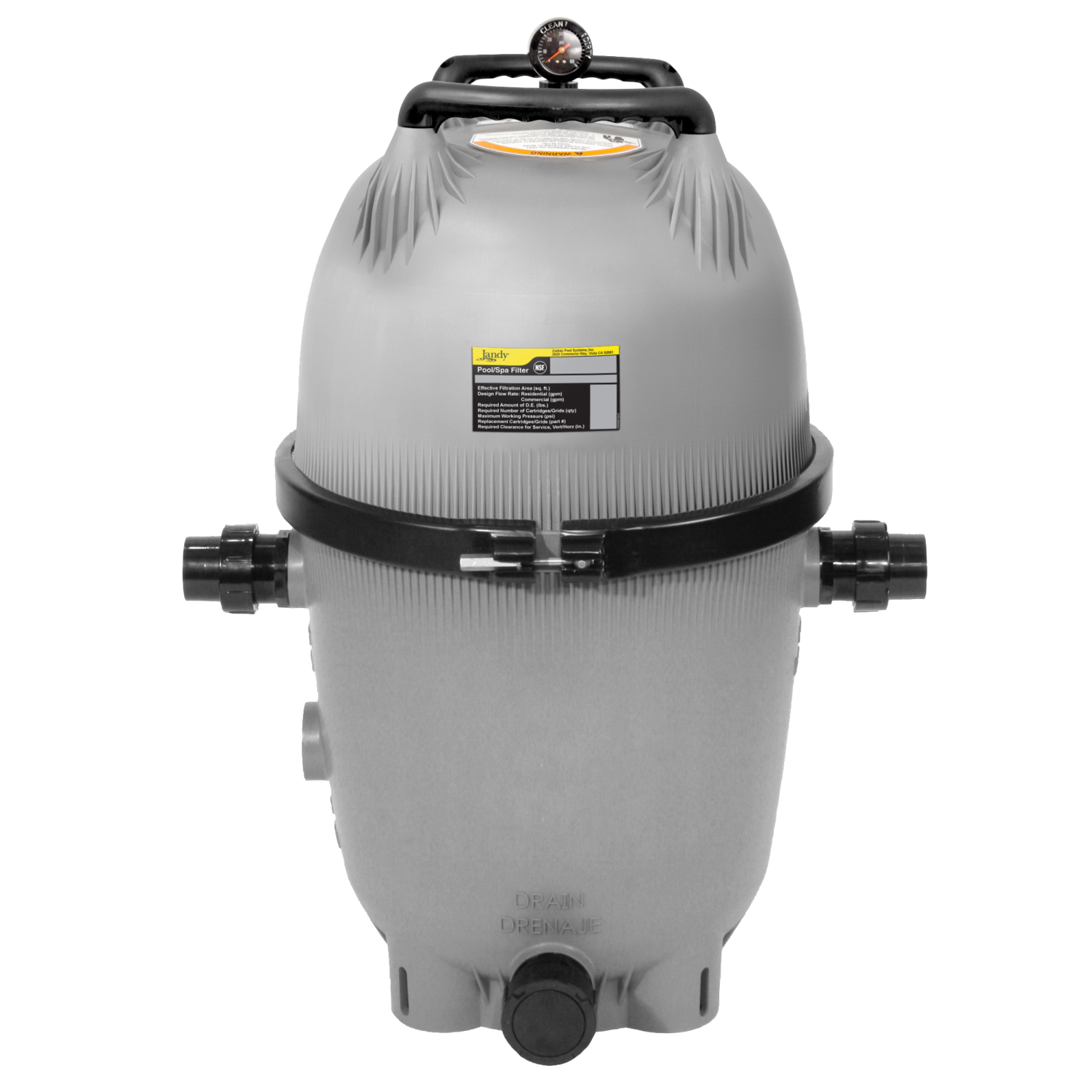

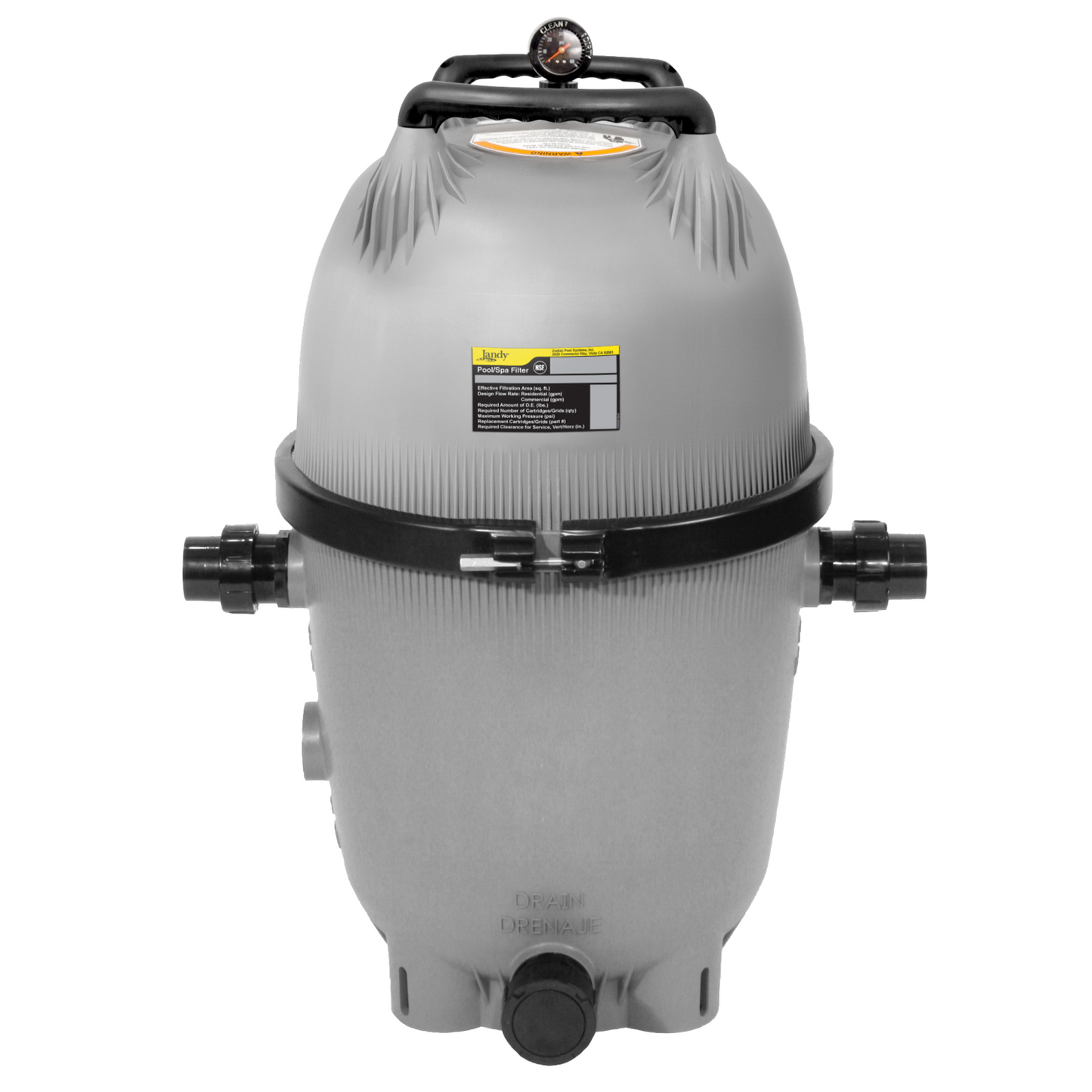

CV340 – Provides 340 sq. ft. of filter area with a maximum flow rate of 127 GPM. In six hours it filters up to 45,720 gallons, and in eight hours up to 60,960 gallons. Operating pressure is rated at 50 psi with a typical startup range of 6–15 psi. The unit weighs about 106 lbs, stands 41 inches tall, and measures 25 inches in diameter. It uses four cartridges, each 85 sq. ft., with inlet and outlet ports positioned on opposite sides for efficient hydraulic performance.
CV460 – Offers 460 sq. ft. of filter area and handles a maximum flow rate of 150 GPM. It processes approximately 54,000 gallons in six hours and 72,000 gallons in eight hours. The working pressure is up to 50 psi with a 6–15 psi startup range. Dimensions include a height of 41 inches and a 25-inch diameter, with a weight of around 106 lbs. The filter uses four cartridges, each 115 sq. ft.
CV580 – Features a large 580 sq. ft. of filter area and supports up to 150 GPM. It can filter about 54,000 gallons in six hours or 72,000 gallons in eight hours. Like the other models, it has a maximum working pressure of 50 psi and a startup pressure range of 6–15 psi. It weighs roughly 112 lbs, stands 47 inches tall, and has a 25-inch diameter. This model uses four cartridges, each 145 sq. ft., for extended dirt-holding capacity and longer cleaning cycles.
Residential: 1 - year parts and labor warranty Commercial: 1 - year parts and labor (warranty is provided by the manufacturer)
Filter Installation Option Details: Covers replacement of an existing pool filter only. Includes up to 5 feet of pipe and 4 fittings for plumbing connections. Service available in Miami-Dade, Broward, and Monroe counties.
